Drafting Film

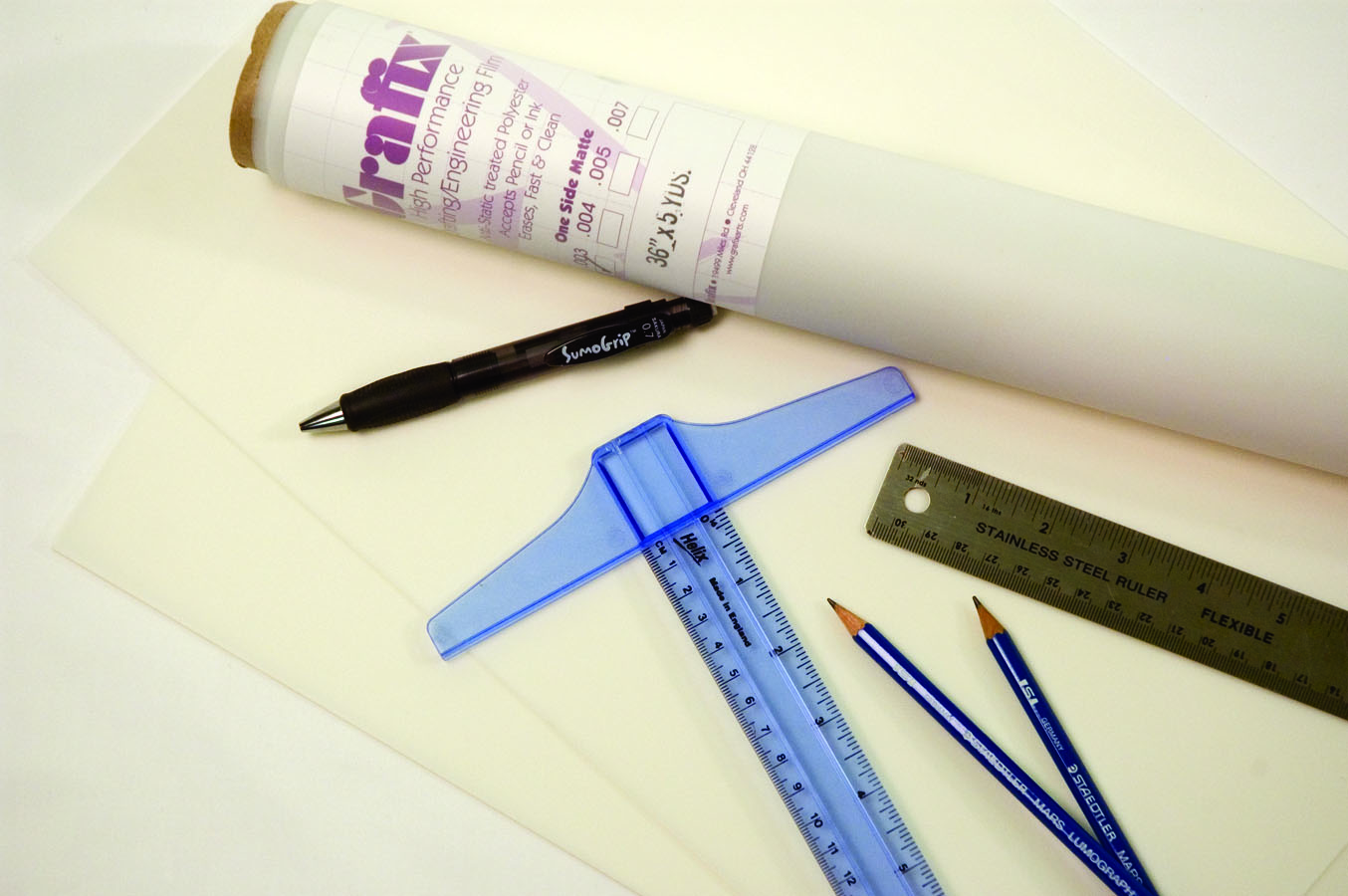

Grafix Drafting Film is a polyester film with a one or two side matte translucent drawing surface. This film accepts lead, charcoal, graphite, colored pencil, pen and ink with ease. It erases cleanly without smearing or leaving shadows.

  • High translucency
  • Will not tear or yellow
  • Lays flat
  • Archival
  • Dimensionally stable

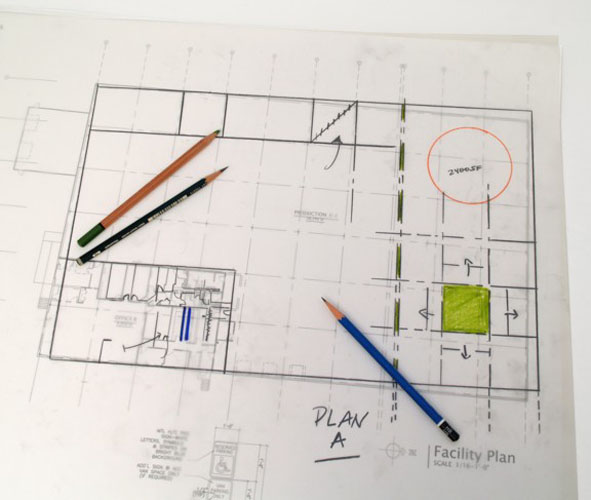

Widely used in engineering, drafting, laser cutting fabrication, stencil making, drawing, and mixed media applications.

Grafix Drafting Film is offered in .003”, .004”, .005” and .007” thicknesses.

Available with a 1 or 2 side matte finish in sheets, rolls, and packs.

Inkjet printable Drafting Film with a 2 side matte finish in .004″ sheets. Printable on 1 side.

View Video

How is 1/Side Matte and 2/Side Matte Drafting Film Different?

Our 2 sided matte drafting film has an identical matte coating on both sides, while our 1 sided matte drafting Film has a matte coating on 1 side and a gloss coating on the other.

Can Drafting Film be Laser Cut?

Yes, both the 1/side matte and 2/side matte Drafting Film can be laser cut, either in single sheets or stacks.

What is the heat resistance of Drafting Film?

Drafting Film is designed for use in environments below 85C/185F.

How can you tell which side is Ink Jet Printable on the .004” Matte 2 sided drafting film?

Using a highlighter, draw a line with multiple colors on each side. The ink jet side should be brighter and more consistent lines. The non-ink jet side should be dull and the lines may not be consistent. The highlighter may not dry on the non-ink jet side also.

Does Drafting Film come one-sided or two-sided?

Drafting Film is available in one-sided and two-sided films.
